    Cardboard Single Facer Corrugated Roller High Precision Tungsten Carbide Flute

    Ask Lasest Price
    Brand Name : YIKE GROUP
    Model Number : YK-280,320,360
    Certification : CE, ISO
    Price : $7,000.00 /set
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 300 sets per Month
    Delivery Time : 80 days after deposit
    • Product Details
    • Company Profile

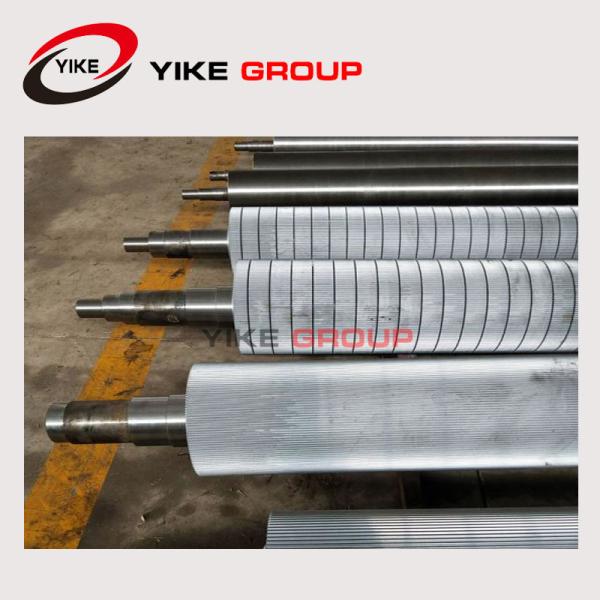

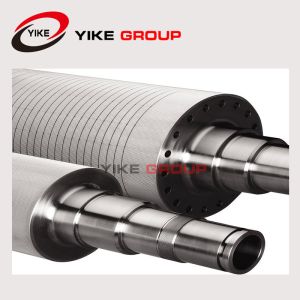

    Cardboard Single Facer Corrugated Roller High Precision Tungsten Carbide Flute


    Corrugated Cardboard Single Facer High Precision Tungsten Carbide Flute Corrugated Roller


    Corrugated Roller

    Features:

    ● High precision hard chrome steel A C B E F G flute corrugated roller

    ● Type: Hard Chrome & Tungsten Carbide

    ● Used for carton box corrugator machine-Single Facer


    Description

    Tungsten Carbide Type Corrugated Roller

    ● Tungsten Carbide technology is the best surface treatment of Corrugated roll

    ● With a Tungsten Carbide coat on the surface of the flute, make the corrugated roller with high wearability. The lifetime of Corrugated Roller becomes a Longer lifetime.

    ● Tungsten Carbide corrugated roller with lower flute height and height of teeth keep for a long time, save flute paper and glue capacity, make the paperboard stable quality. More important is the flute height almost does not change during whole running life.


    Characteristics
    FluteACBCBDEFG
    ProfileUVUVUVUVUVUVUVUV
    Counts(300mm)34±236±244±250±266±396±4124±10185±12
    Height4.6-4.93.6-3.93.0-3.42.6-2.91.9-2.11.1-1.80.7-0.80.5-0.65
    Take Up Rate1.51-1.591.44-1.511.42-1.491.36-1.421.40-1.411.29-1.391.22-1.261.20-1.25
