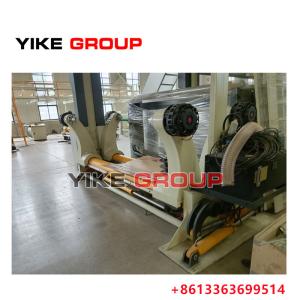

Working Wide 2500 MM Hydraulic Mill Roll Stand For High-Speed
Corrugated Cardboard Production Line
Technical parameters
Working wide
| 2500mm |
| Paper diameter | MAX: 1500mm MIN:300mm
|
| Paper width | MAX: 2550mm MIN:800mm
|
| Weight capacity | 3.5T
|
| Paper head size | Teeth 3 inches 4 inches
|
| brake | Spur gear type more points pneumatic
|
| Working air pressure | 0.4---0.8Mpa
|
Main performance characteristics
★Adopt hydraulic drive to complete the paper clamping, loosen,
remove for the medium, translation left and right and others,the
lifting of the paper adopts hydraulic drive.
★The brake uses a multi-point brake system, a gear disc structure,
equipped with a cooling fan, Yadeke pneumatic components, stable
tension, and long life.
★The large-diameter spindle design, the swing arm slides smoothly,
and the steel guide rails are treated with high frequency
treatment, which is super wear-resistant.
★The hydraulic cylinder is installed on a twisted shaft, which does
not bear radial force and is easy to maintain.
B,Hydraulic system parameters:
Working pressure
| Hydraulic cylinder working range | Hydraulic cylinder working range | Hydraulic station motor power | Solenoid valve working voltage |
16---18Mpa
| ￠125×360mm | ￠80×850mm | 4KW --380V -- 50Hz | 220V--50 Hz |
FAQ
1. who are we?
CHINA YIKE GROUP, Which based in Hebei, China, start from 2002,sell
to Mid East(24.00%),South America(21.00%),Eastern
Europe(15.00%),Africa(10.00%),Southeast Asia(10.00%),North
America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern
Asia(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Firstly pre-production sample before mass production;
Secondly Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making machine, Box
Printing Forming Machine, Auto folder gluer, sitching machine, die
cutting machine, bundling machine..
4. why buy from us not from other suppliers?
Factory related carton machinery import & export company, based on
more than 30 years experience in providing complete and carton
machinery solutions according to different customer situations and
requriements. reliable quality and good service on site.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express
Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit
Card,PayPal,Western Union,Cash;
Language
Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian
